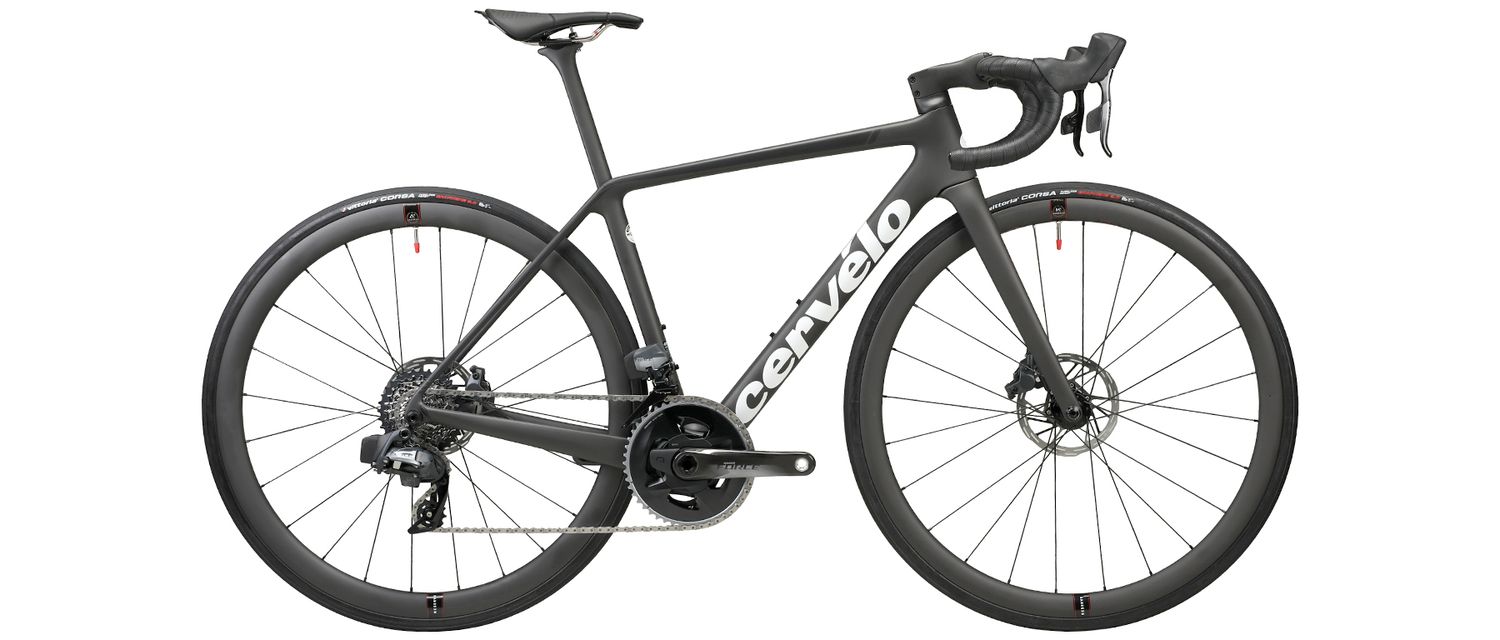

Cervelo R5 Sram Force eTap AXS

Please note: this is just a small sample of what we have in stock. Due to dealer agreements, we are not able to advertise our full bike inventory online. Stop by the shop to see a much larger selection and find the perfect bike for you.

• Shift/Brake Levers: Force eTap AXS HRD 2x wireless shifting / Force HRD braking
• Front/Rear Derailleur: Force eTap AXS FD, Braze-on w/battery / Force AXS RD w/battery for 36T max cassette
• Brakes/Rotors: Force HRD Flat Mount Calipers, Paceline CL 160mm disc rotors
• Crankset/BB: Force AXS w/ powermeter; 48-35T / SRAM DUB BBright
• Cassette/Chain: Force XG-1270 10-33T / Force Flattop 12spd
• Other: eTap Battery charging dock with USB cable

• Handlebar/Tape: Cervelo HB13 Carbon, 31.8mm, semi aero, semi-internal routing, 80mm Reach, 123mm Drop / Cervelo Grip tape
• Stem: Cervelo ST31L Carbon, 31.8mm, fits C-shape steerer for internal routing
• Seatpost: Cervélo SP24 Carbon Aero (D-shape) Post
• Saddle: Prologo Scratch M5 PAS TiRox

• 48cm | Bar width: 38c-c, Stem length: 80mm, Seatpost: Zero offset
• 51cm | Bar width: 40c-c, Stem length: 90mm, Seatpost: Zero offset
• 54cm/56cm | Bar width: 42c-c, Stem length: 100mm, Seatpost: 15mm Setback
• 58cm/61cm | Bar width: 44c-c, Stem length: 110mm, Seatpost: 15mm Setback

Race-grade road disc frameset bicycle featuring 2x12-Speed SRAM Force eTap AXS for all-around riding with excellent performance

Current R5 56cm Squoval™Max frameset (frame/fork) is 160 grams lighter than predecessor

Frame stiffness has been optimized for comfort and reduced weight; fork developed with improved stability

Aero efficiency achieved total improvement of 19 grams in reduced drag, or 2.5 watts

BBright asymmetric BB shell (79mm PF) and vertically oversized chainstays deliver impressive drivetrain power and lateral stiffness

Full internal hydraulic hose and wire routing from bar into frame for clean, aero effect; Electronic-only cockpit (rear wiring from seattube to RD)

Cervelo Aero (bolt-on) Thru-Axles, w/ Removable Handle Tool

Specifications

Frame: R5 road, carbon, FM disc brake (160mm max rotor), braze-on FD tab, 12/142mm Thru-axle dropout, Rear seatpost wedge

Fork: R5 full carbon integrated, tapered, FM disc brake (160mm max), 12/100mm Thru-axle dropout

Groupset: SRAM Force eTap AXS 2x12-speed wireless shifting/hydraulic disc braking

Wheelset: Reserve 34|37mm, New DT370; 24h (F/R), 22.6mm IRW (F), 21.6mm IRW (R), CL Disc, TLR, XDR freehub (Some bikes may ship with a comparable quality Zippp 76/176 hubset- Excel cannot control this)

Tires: Vittoria Corsa TLR G2.0 700x25 (tire spec may change due to manufacturer stock)

Cockpit

Cervelo Accessories: Stem Faceplate Front Computer/Acc Mount, Rear Acc Mount
